Synergy 8682-01 Front Brake Line Relocation Brackets

The Synergy 8682-01 Front Brake Line Relocation Brackets from CDP are highly recommended when lifting or leveling your 2011-2023 Ford F-250/350 4WD. This relocation bracket raises the stock brake line bracket 2.5". This bracket allows you to keep your factory brake line when used in conjunction with the Synergy Leveling Kit. When leveling your Super Duty, the increased height and down travel will overextend the stock brake line, leading to possible damage and brake system failure. By relocating the factory brake line bracket up, the suspension can safely handle a shock with an extended length of 24". By utilizing these brackets, the factory brake lines and associated ABS clips can be retained. Furthermore, you do not need to open the factory brake system, minimizing mess from brake fluid and possible air bubbles in the brake system.

Features:

• Laser Cut & CNC Bent
• No Modifications Required To Install
• Zinc Plated For Corrosion Protection
• Provisions For Factory Vacuum Lines
• Raises Factory Brake Line Bracket 2.5"
• Allows For Increased Suspension Droop
• No Need To Bleed Brakes Or Open Brake System

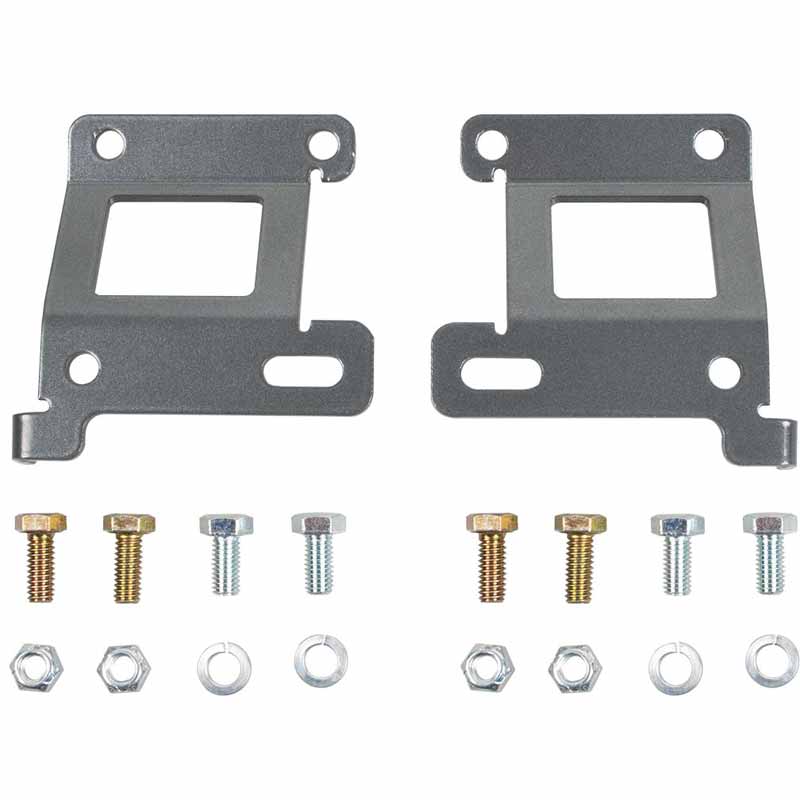

8682-01 Brake Line Relocation Bracket Kit Includes:

(1) Ford Super Duty Left Side Brake Line Relocation Bracket
(1) Ford Super Duty Right Side Brake Line Relocation Bracket
(2) Brake Line Bracket Hardware Kits

Notes:

Compatible with the 2.5 inch Leveling Kit.
Cannot be used above 2.5" of lift height.
Only compatible with 4x4 front axle.
Shock extended length cannot exceed 24".

WARRANTY INFO:
Limited Lifetime
