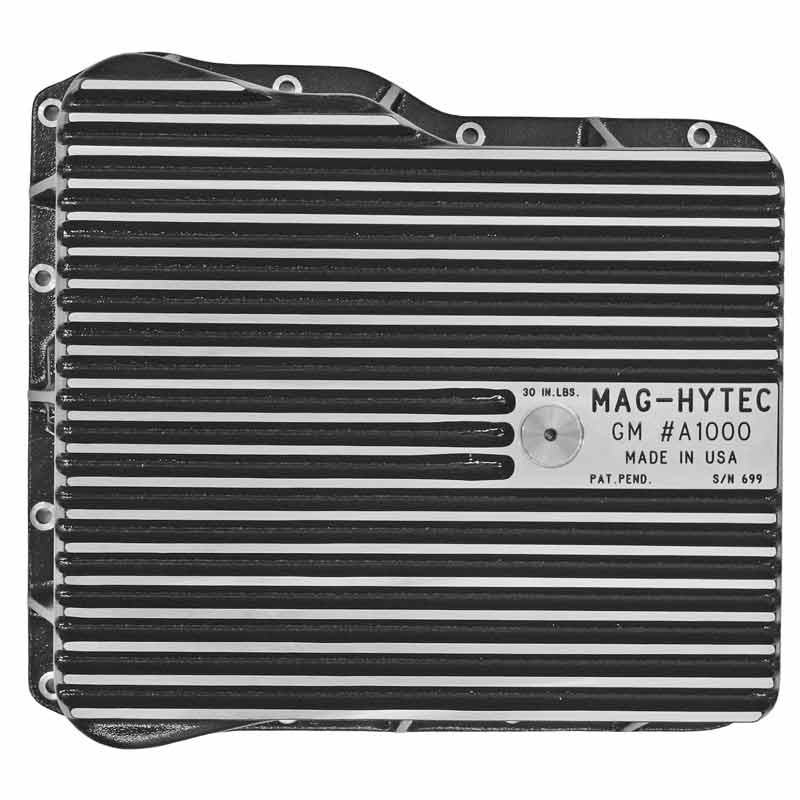

Mag-Hytec Allison A1000 Transmission Pan

The Mag-Hytec pan is constructed of high quality aircraft aluminum and has a powder-coated finish. The bolts are zinc plated allen head screws and the washers are stainless steel. These components require no maintenance.

1. 14 5/16 stainless AN washers

2. 1 Mag-Hytec Transmission Pan with O-ring (ARP 568-282) installed

3. 1 1/8 pipe plug SS (for optional temperature sender not included)

4. 1 Drain plug assembly with magnet and O-ring (ARP 568-910) installed

5. 13 8 MM X 25 MM Zinc plated allen head cap screws (Torque 12-16 ft. lbs)

THE ALLISON DEEP PAN FILTER (see below) MUST BE USED WITH THE MAG-HYTEC PAN!!

FAILURE TO DO SO CAN RESULT IN TRANSMISSION FAILURE!!
