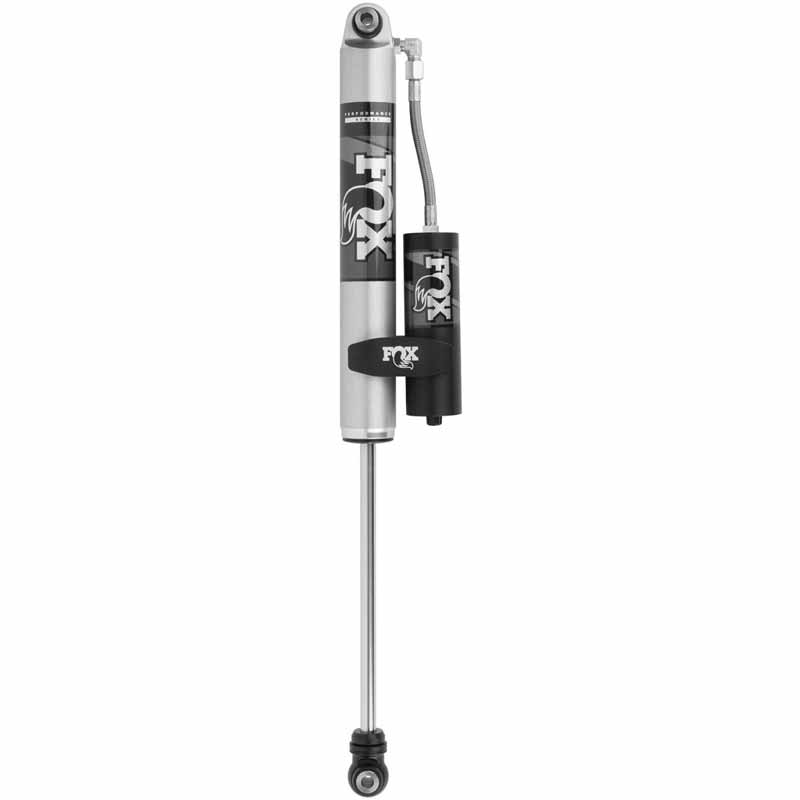

Fox 985-24-228 Performance Series 2.0 Smooth Body Reservoir Shock

The Fox 985-24-228 Performance Series 2.0 Smooth Body Reservoir Shock from CDP is a must-have when taking your Jeep off the beaten path. The Performance Series 2.0 Reservoir smooth body shock, made from aluminum, is a reliable and affordable option for drivers. Its design is optimized for heat reduction, utilizing a metal impacted clear anodized aluminum body to dissipate heat faster than a conventional steel body shock.

This shock boasts an external reservoir that can hold more oil and nitrogen, while also providing a sleek racing aesthetic. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum.

The Performance Series 2.0 Reservoir shock includes a race-developed high flow damping piston that matches specific valving to deliver a predictable ride quality suitable for rough road conditions. Overall, this shock is a top performer in the industry and provides hassle-free installation for drivers.

Features:

• Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
• Body Plating: Clear-anodized for a durable finish
• Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application-specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bushings: Quiet nitrile rubber allows for increased suspension articulation

Specifications:
Ext Length: 29.020
Col. Length: 17.400
Travel: 11.620
Top Mount: Eyelet
Bottom Mount: Eyelet

Application Note:
Includes Billet Reservoir Clamp

WARRANTY INFO:
1 Year Limited
