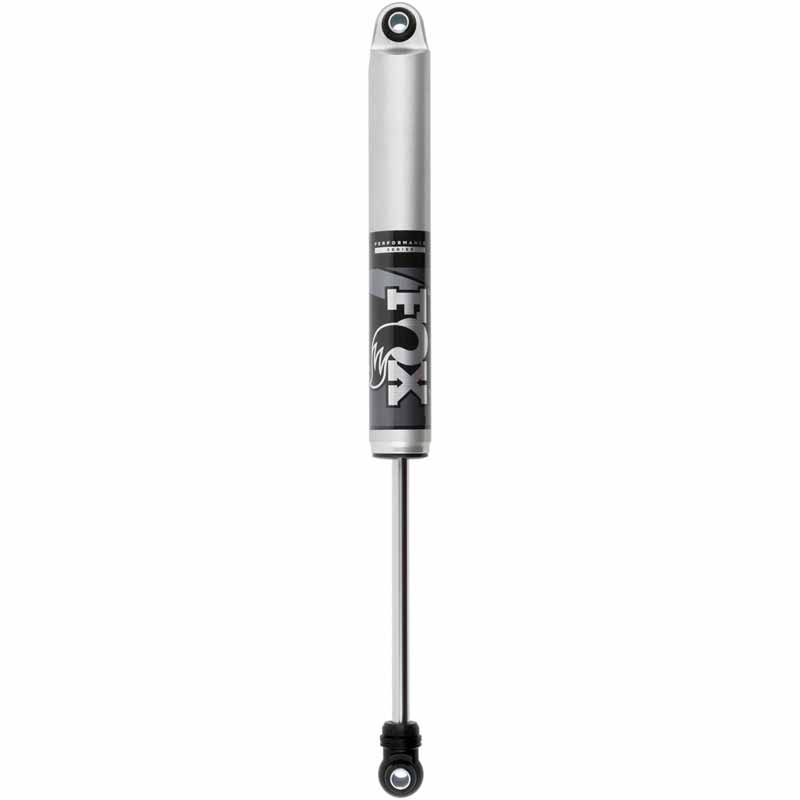

Fox 985-24-209 Performance Series 2.0 Smooth Body IFP Shock

Visit CDP today and replace the OEM shocks on your GM with the Fox 985-24-209 Performance Series 2.0 Smooth Body IFP Shock. The Performance Series 2.0 Reservoir smooth body shock is crafted with an aluminum body, delivering industry-leading performance. Its heat-reducing design features a metal-impacted clear anodized aluminum shock body that dissipates heat faster than conventional steel body shocks. The external reservoir allows for an increased oil and nitrogen capacity while providing a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race-developed high flow damping piston matched with application-specific valving provides the Performance Series 2.0 Reservoir shock with a predictable ride quality capable of handling even the roughest road conditions.

Features:

• Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
• Body Plating: Clear-anodized for a durable finish
• Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application-specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bushings: Quiet nitrile rubber allows for increased suspension articulation

Specifications:
Ext Length: 25.920
Col. Length: 16.300
Travel: 9.620
Top Mount: Eyelet
Bottom Mount: Eyelet

WARRANTY INFO:
1 Year Limited

Note: Does Not Fit ZR2/AT4X Models
Fits Trail Boss/AT4 with 0" Lift Only
