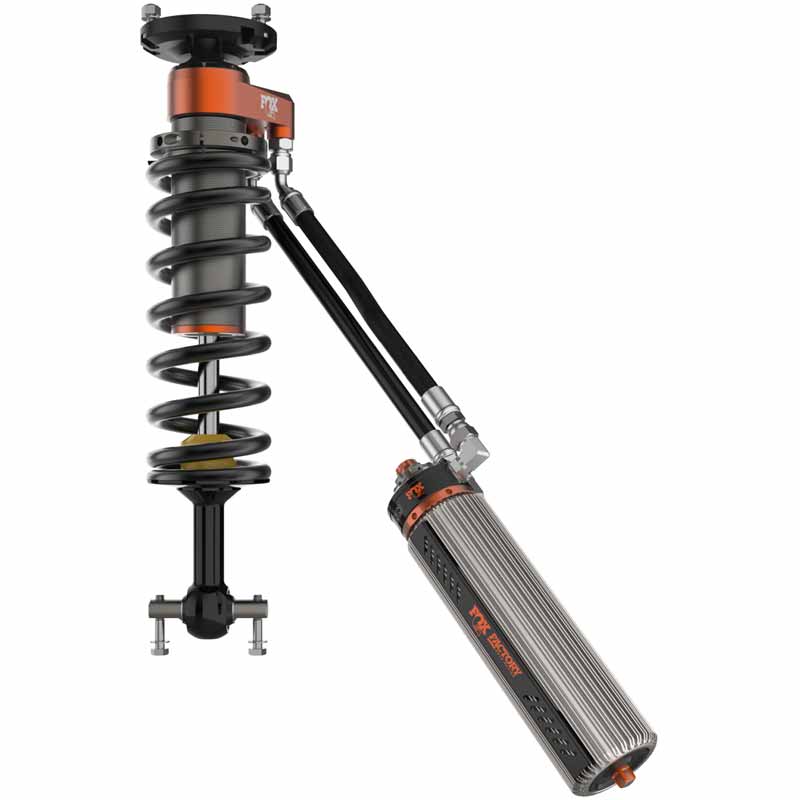

Fox 883-06-175 3.0 Factory Race Series Coil-Over Reservoir Shock (Pr)

Order the Fox 883-06-175 3.0 Factory Race Series Coil-Over Reservoir Shock (Pr) from CDP and experience position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your vehicle for load, environment, and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.

Features:

• Position-Sensitive Damping Technology
• High-Speed Ready Performance To Handle Aggressive Driving Conditions
• DSC Adjuster Enables Customization For Load, Environment, And Driving Style
• Dual Speed Compression (DSC) Adjustment For Fine-Tuning Damping Characteristics
• Type III Anodization On 3-Inch Diameter Aluminum Bodies Prevents Corrosion And Wear
• Patented Internal Bypass Technology For Precise Damping Control Across Multiple Zones
• Recirculating Reservoir Bridge For Continuous Shock Fluid Exchange And Temperature Regulation

WARRANTY INFO:
1 Year Limited

Note: Requires Upper Control Arm | Includes Universal Bracket | AT4 Model Fits 1" Lift Only
