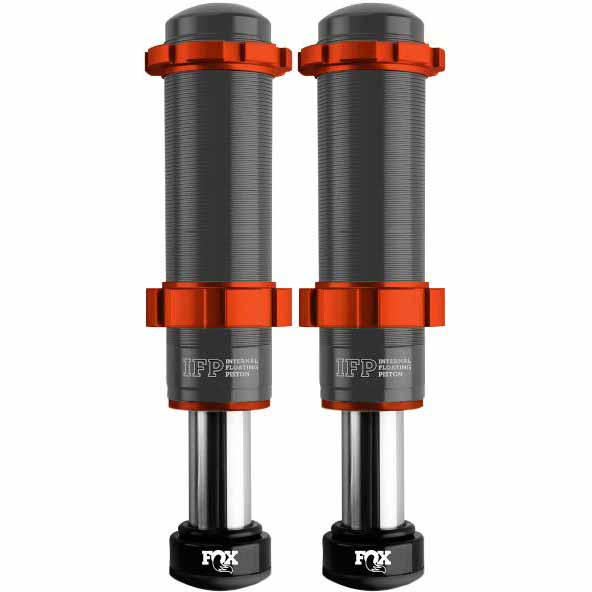

Fox 883-02-169 Factory Race Series 2.0 Bump Stop IFP (Pair)

Enhance the Suspention on your 2020-2023 Jeep Gladiator with the Fox 883-02-169 Factory Race Series 2.0 Bump Stop IFP from CDP. The Factory Race Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel.

The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.

Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.

Features:

• Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
• Components: Black anodized, CNC machined 6061-T6 billet aluminum
• Pad: Replaceable Delrin� strike pad
• Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
• Piston: Heavy-duty powdered steel
• Valving: Tunable, velocity-sensitive deburred valve shims
• Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
• Adjustments: Nitrogen pressure

Specifications:
Ext Length: 10.040
Col. Length: 8.180
Travel: 1.850
Top Mount: Threaded Body
Bottom Mount: None

WARRANTY INFO:
1 Year Limited
