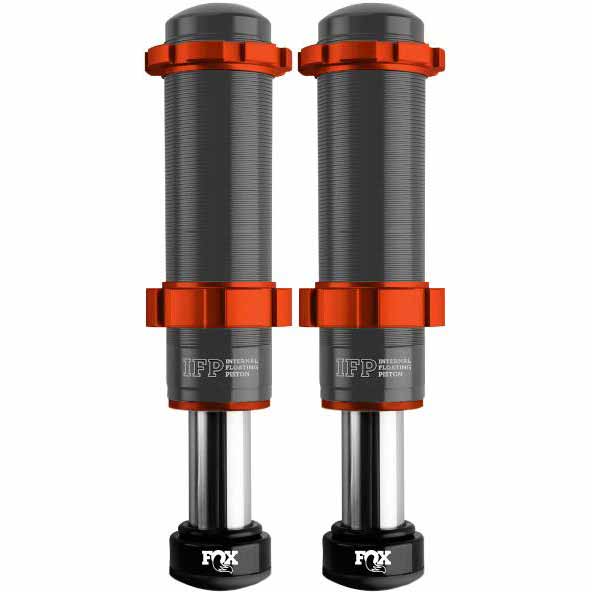

Fox 883-02-168 Factory Race Series 2.0 Bump Stop IFP (Pair)

Install the Fox 883-02-168 Factory Race Series 2.0 Bump Stop IFP (Pair) from CDP onto your Wrangler. The Factory Race Series bump stop is inspired by off-road racing predecessors, integrating race-proven technology and cutting-edge features. It provides increased damping performance and bottom out control in the last few inches of suspension travel.

The threaded body enables you to adjust the mounting height, allowing for fine-tuning when the bump stop engages during up travel to prevent harsh bottom outs.

An Internal Floating Piston (IFP) in the shaft separates oil and nitrogen to prevent cavitation and bucking, while the negative coil spring softens initial impacts and harsh top-outs.

The FOX AIR VALVE (FAV) is integrated and located at the bottom of the shaft for easy access, and it's protected by a replaceable strike pad.

The Factory Series bump stops allow you to use every inch of suspension travel without experiencing harsh bottoming.

Features:

• Body: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
• Components: Black anodized, CNC machined 6061-T6 billet aluminum
• Pad: Replaceable Delrin� strike pad
• Shaft: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
• Piston: Heavy-duty powdered steel
• Valving: Tunable, velocity-sensitive deburred valve shims
• Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
• Adjustments: Nitrogen pressure

Specifications:
Ext Length: 10.040
Col. Length: 8.180
Travel: 1.850
Top Mount: Threaded Body
Bottom Mount: None

WARRANTY INFO:
1 Year Limited
