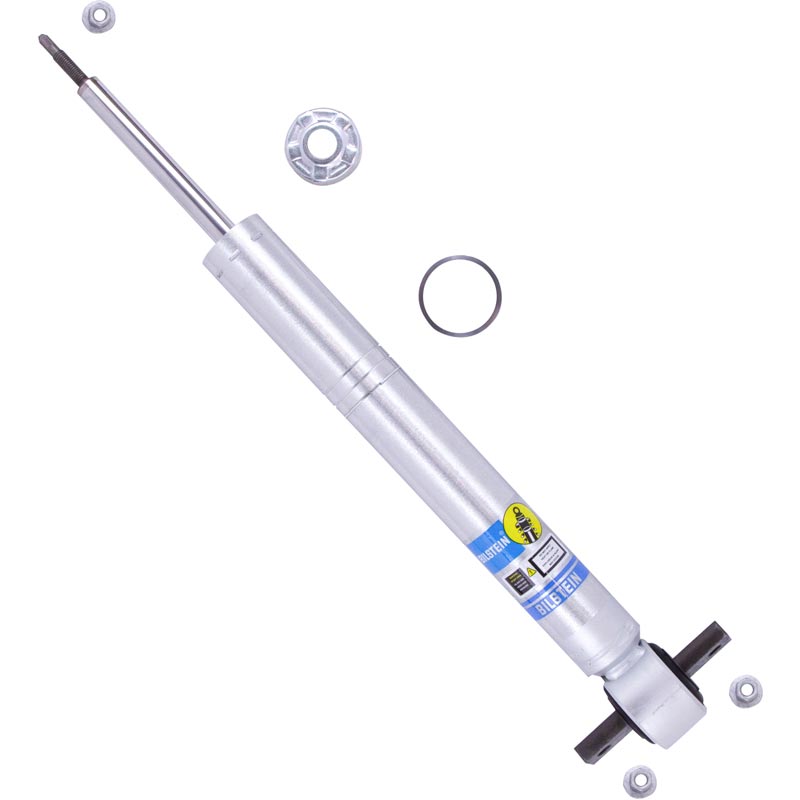

Bilstein 24-309509 B8 5100 Series Shock Absorber

Add ride height adjustability with the Bilstein 24-309509 B8 5100 Series Shock Absorber from CDP. The Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston with a self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features:

• Multiple Snap Ring Positioning Grooves
• Ride Height Adjustable
• Digressive Piston
• Improved Wheel Travel And Handling

Specifications
Collapsed Length 17.58in
Extended Length 21.97in
Collapsed Length 446.6mm
Extended Length 558.0mm
Finish Zinc Plated
Reservoir No
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter 46mm
Spring Seat Included No
Adjustable Damping Non-Adjustable
Position Front
Quantity Per Vehicle

WARRANTY INFO:
Limited Lifetime

Note: Trail Boss / AT4; Front Lift Height: 0-1.1"
