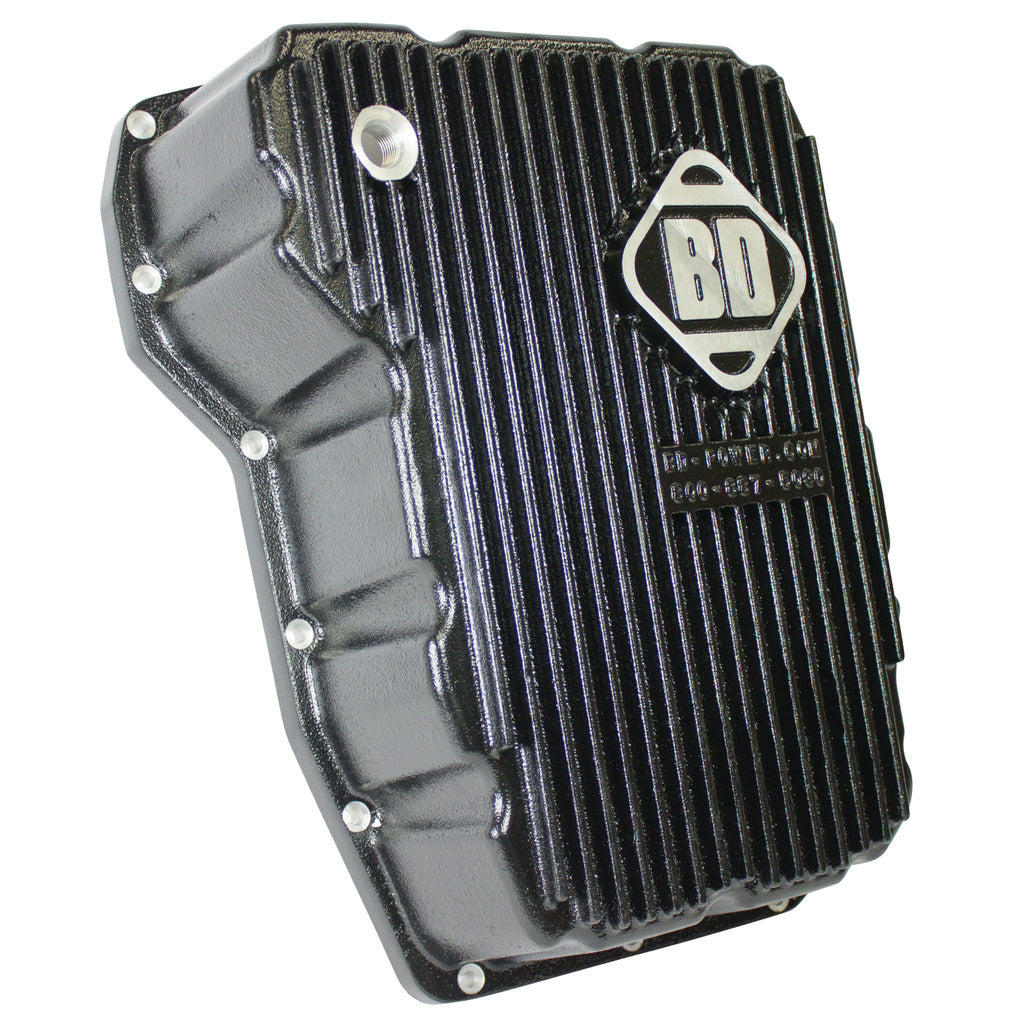

Protect the 68RFE Transmission in your Dodge Ram 6.7L Diesel with the BD-Power 1061525 Deep Sump 68RFE Transmission Pan, the easiest transmission mod you can make. High volumes of cool transmission fluid equate to long transmission life. BDs deep aluminum pans increase oil capacity, while aluminum construction and heat-dissipating fins keep temperature down. As an added bonus, the pans increased rigidity prevents case twisting. Holds 4.5 quarts more fluid than stock pan.
Features:
4.5 Quarts Of Increased Capacity
Includes OEM Style Replacement Gasket
Increased Rigidity Prevents Case Twisting
Aluminum Construction With Heat-Dissipating Fins
Comes With Magnetic Drain Plug And A Temperature Sending Unit Port
Note:
Will fit most 545RFE transmissions with HEMI and 4.7L engines where
exhaust crossover pipe, frame cross member or catalytic converter do not
interfere.
Takes Approx. 11 Quarts of Automatic Transmission Fluid (ATF+4)
Torque Specifications: Pan Bolts - 105 lbs-in Sensor Plug - 12 lbs-ft Pan Drain Plug - 20 lbs-ft
